真正的創新不是在真空室中完成的。Weir公司工程師的設計流程包含了與每個人(包括客戶，制造和供應鏈專家)的協作對話溝通。這種方法使我們可以在實施之前在紙面上解決客戶痛點。在這個過程中，我們終設計出了客戶真正滿意的解決方案。

Seaboard™組合式鎖環(ULR)井口裝置是三部分網絡系列的主題。在傾聽客戶意見時，我們了解到他們大的問題是安全性、時間和成本。因此我們從頭開始建立一個井口裝置，以直接解決這些問題。

在該井口裝置到達現場之前，Weir在制造方面的協作和精簡方法可以利用并行開發路徑來優化效率。從設計到現場交貨的時間通常約為12周，比傳統井口裝置快6個月。

在安裝過程開始之前，我們團隊仔細研究了傳統井口裝置的運行程序。首先，安裝下一個之前需要拆卸防噴器(BOP)，然后必須重新連接，且每個法蘭連接需要三到四個小時。另外，操作人員還必須等待水泥干涸，才能將BOP提升并移動到下一個井口設備，手動設置滑動和修整外殼以匹配下一個閥芯。單這個過程可能就需要長達18個小時。

這個過程不僅耗時，而且很危險，需要在一個不穩定的環境里進行火焰切割，焊接和研磨。時間越長，對人員和資產來說風險就越大。我們的目標是簡化安裝，減少這些耗時的過程以及隨之而來的風險和成本，這是ULR能實現的操作性三重技術。

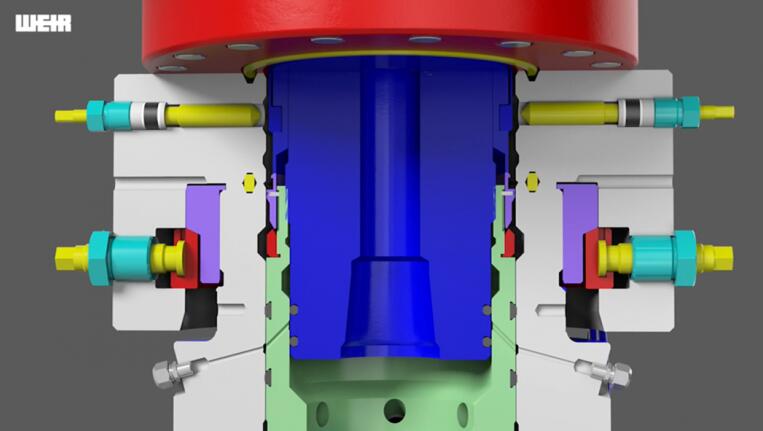

首先，ULR在單件式外殼內采用了嵌套式系統，縮短了整體堆疊高度，減輕了重量，使安裝更容易，安裝風險更小。技術人員可以使用心軸套管懸掛器，在不需要切割、焊接或研磨的情況下，通過旋轉工作臺和防噴器來運行、著陸、循環和粘接套管。內部鎖定密封組件消除了傳統井口設備上的多個泄漏路徑。

另一個提高安全性的策略是，Weir在尋找方法減少工作人員暴露在危險環境中的時間。內部鎖環組件和油管掛可為每套管柱節省6-8小時。通過快速連接的集線器，操作員可以比傳統的法蘭連接更快地將井口上的防噴器對準，著陸和固定，安裝時間從2小時減少到30分鐘以內。另外，在恢復操作之前不再需要等待水泥干燥。

顯然，減少操作時間可以縮減相關的勞動力成本。鉆井時間的一天可以為井口付出代價，另外，通過降低風險，還可以保護包括人員在內的寶貴資產，這是重中之重。

在ULR這個案例中，Weir充分聽取了客戶的意見，并提供了降低總體擁有成本的解決方案。接下來，我們將深入探討這個更安全、創新、節省時間的井口設備的特點。
