Weir Oil & Gas公司是壓力泵和壓力控制設備和服務的上游領先提供商，其今天宣布推出用于探井和開發井的WMSS10泥線懸浮系統。這種堆疊系統減少了碎石障礙，提高了可靠性，并提高了海上回接作業的效率。

Weir的WMSS10泥線懸浮系統將油井的重量轉移到海底。它為所有套管柱提供了一種斷開的方法，允許在短時間內暫時廢棄一口井，且無需切割套管。在生產平臺井口甲板上，可以輕松地重新連接套管柱以完成表面處理。

WMSS10泥線懸浮系統的特點是，有一系列具有著陸和負載環的吊架，以便在自升式鉆井時將每個套管柱的重量轉移到導體和海底。

“WMSS10泥線懸浮系統的推出豐富了我們的產品供應，使我們能夠提供完整的井口相關設備解決方案，” Weir Oil & Gas壓力控制東半球總裁Gordon Cameron表示。

WMSS10專為高容量套管懸掛負載和高壓STD和H2S井而設計，使操作員可以將套管運行到更深處。堆放式配置在先前的密封區域下提供了一個沖刷點。

金屬密封可以防止高壓和腐蝕性流體，而單獨的運行和回接螺紋可在鉆井和臨時棄井期間提供保護。流通區域增大，在滲碳過程中使循環達到大限度。此外，運行工具中的大量沖洗端口可消除水泥污染。長導入使自對準更易于刺中。

標準套管配置為30” x 20” x 13-3 / 8” x 9-5 / 8”，適用于工作壓力為10,000 psi的STD和H2S應用。

關于鼎恒石油

四川鼎恒石油是Weir SPM的授權代理商，若需要購買SPM產品或需要了解產品詳細參數及相關疑問，可直接進入鼎恒石油官網咨詢網站客服或者撥打銷售熱線18000522697。

四川鼎恒石油機械設備有限公司(http://m.derekpater.com)是一家擁有進出口經營權，長期從事國內外石油天然氣設備和配件的專業銷售公司。鼎恒石油公司總部設在四川成都，在加拿大大不列顛哥倫比亞省成立了分公司。我公司與多家世界知名制造廠商建立了緊密的合作關系。

注：該文章由鼎恒石油編譯，轉發須注明出處。

附英文原文：

Weir Oil & Gas Introduces WMSS10 Mudline Suspension System for Offshore

Stack-Down System Improves Reliability and Efficiency of Tie-Back Operations

Weir Oil & Gas, a leading upstream provider of pressure pumping and pressure control equipment and services, today announced the introduction of its WMSS10 Mudline Suspension System for exploratory and developmental wells. This stack-down system eliminates debris traps, improves reliability and enhances efficiency of tieback operations in offshore operations.

Weir’s WMSS10 Mudline Suspension System transfers the weight of the well to the seabed. It offers a method of disconnect for all casing strings, allowing the temporary abandonment of a well in a minimum amount of time and without having to cut casings. Casing strings can be easily reconnected for surface completion on a production platform wellhead deck.

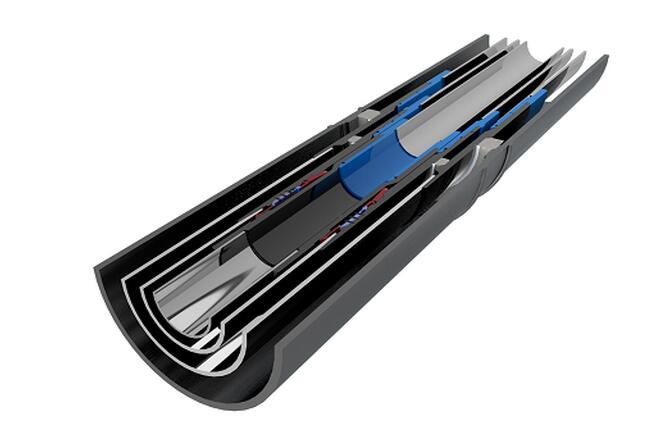

The WMSS10 Mudline Suspension System features a series of hangers with landing and load rings located on load shoulders to transfer the weight of each casing string to the conductor and the seabed while drilling from a jack-up.

“The introduction of our WMSS10 Mudline Suspension System enhances our product offering and enables us to offer a complete wellhead related equipment solution,” said Gordon Cameron, President of Weir Oil & Gas Pressure Control for the Eastern Hemisphere.

The WMSS10 is designed for high-capacity casing hang-off loads and high pressure STD and H2S wells to allow operators to run casings to deeper depths. The stack-down configuration provides a washout point below the previous sealing area.

Metal-to-metal sealing protects against high pressures and corrosive fluids while separate running and tieback threads offer protection during drilling and temporary well abandonment. Generous flow-by areas maximize circulation during the cementation process. Additionally, generous washout ports in the running tool eliminate cement contamination. Long lead-in allows for self-aligned easy stabbing.

The standard casing configuration is 30” x 20” x 13-3/8” x 9-5/8” with 10,000 psi working pressure for STD and H2S application.
