產品描述

---

---

止回閥在微小的壓差下工作。介質沿箭頭方向自由流動，沿相反方向流動將被抑制。

•無彈性體(無O形圈)各種介質的密封球閥標準

•氣密型球閥可選O型環/四環

•整體長度緊湊

產品規格

---

---

大工作壓力：

黃銅：2,000 psi(138 bar)

碳鋼：3000 psi(207 bar)

不銹鋼：3,000 psi(207 bar)

破裂壓力：

1至2.5psi(0.07至0.17 bar)

需要其他破裂壓力產品請咨詢工廠。

軟座止回閥如果放置一段時間，會使橡膠粘附在與其接觸的金屬上。由于粘連，會導致初始高裂紋點。而程度取決于很多情況(就座時間，壓力等)。

工作溫度范圍：

-30°F至+ 200°F(-34°C至+ 93°C)

螺紋：

NPTF

材料：

主體：黃銅，鋼，不銹鋼303

球體：不銹鋼440

彈簧：不銹鋼302

滾珠：聚甲奎樹脂

墊圈：不銹鋼304

O形圈/四環：丁腈橡膠

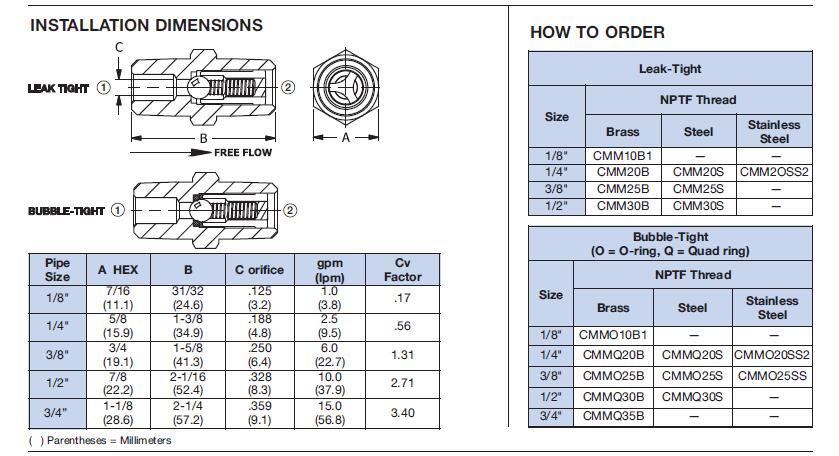

產品參數

---

---



關于鼎恒石油

---

---

 若需要購買井下產品或需要了解產品詳細參數及相關疑問，可直接進入鼎恒石油官網咨詢網站客服或者撥打銷售熱線18000522697。

 四川鼎恒石油機械設備有限公司(http://m.derekpater.com)是一家擁有進出口經營權，長期從事國內外石油天然氣設備和配件的專業銷售公司。鼎恒石油公司總部設在四川成都，在加拿大大不列顛哥倫比亞省成立了分公司。我公司與多家世界知名制造廠商建立了緊密的合作關系。

注：該文章由鼎恒石油編譯，轉發須注明出處。

附英文原文：

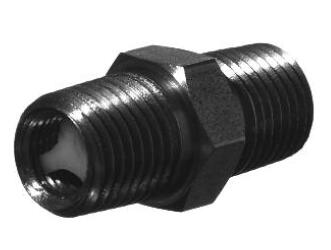

CMM Check Valve Male-to-Male

Description

Check valves operate on slight differential pressure. Free flow is permitted in the direction of the arrow, positive check in the opposite direction.

• elastomer-free (no O-ring) Leak-Tight Ball Check standard for various medias

• Bubble-Tight Ball Check with O-ring/Quad ring optional

• Compact over-all length

Specifications

Maximum Operating Pressure

Brass: 2,000 psi (138 bar)

Carbon Steel: 3,000 psi (207 bar)

Stainless Steel: 3,000 psi (207 bar)

Cracking Pressure

1 to 2.5 psi (.07 to .17 bar)

Other cracking pressures available.

Consult factory.

Soft seat check valves if left seated for a period of time, will have the rubber adhere to the metal it is in contact with. This results in an initial high crack point due to sticking. The degree depends on many things (time seated, pressure, etc.).

Operating Temperature range

-30° to +200° F (-34° to +93° C)

Threads

NPTF

Materials

Body: Brass, Steel, Stainless Steel 303

Ball: Stainless Steel 440

Spring: Stainless Steel 302

Ball Guide: Delrin®

Washer: Stainless Steel 304

O-Ring/Quad Ring: Buna-N
